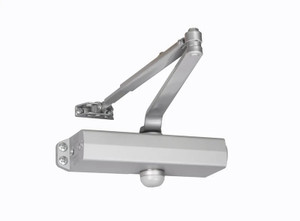

Hager 5300 Door Closer MLT ADJ 1-6

Hager 5300 Door Closer MLT ADJ 1-6

Hager Companies
SKU:
30340-1
$52.76 - $68.38
Current Stock:
Adding to cart… The item has been added
Description
  • Heavy Duty Surface Door Closer
  • Ideal for schools, hospitals, and other high-use environments
  • Lifetime warranty
  • Standard package contains 5301 closer body, 5302 closer cover, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" door
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Material: Aluminum Alloy
  • Cover: Full plastic cover and pinion cap
  • Springs: Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional, Staked valves - Standard
  • Handing: Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard, 15% power adjustment in standard arm for regular and top jamb mount
  • Door Thickness: 1-3/4" (44 mm), 1-3/8" - 2-1/4" (36 mm - 57 mm) Optional
  • Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
  • Finishes: ALM, BRZ, DBZ, GOL, Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle
