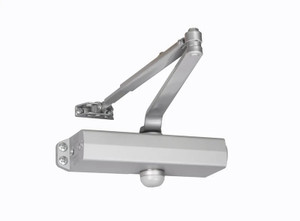

Hager 5300 Door Closer MLT ADJ 1-6
Hager CompaniesWrite a Review
Hager Companies
Hager 5300 Door Closer MLT ADJ 1-6
- Heavy Duty Surface Door Closer
- Ideal for schools, hospitals, and other high-use environments
- Lifetime warranty
- Standard package contains 5301 closer body, 5302 closer cover, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" door
- Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
- ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Material: Aluminum Alloy
- Cover: Full plastic cover and pinion cap
- Springs: Double heat treated steel, tempered springs
- Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional, Staked valves - Standard
- Handing: Non-handed
- Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard, 15% power adjustment in standard arm for regular and top jamb mount
- Door Thickness: 1-3/4" (44 mm), 1-3/8" - 2-1/4" (36 mm - 57 mm) Optional
- Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
- Finishes: ALM, BRZ, DBZ, GOL, Rust inhibiting primer - Standard
- Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle
